Highly flexible configuration for diverse applications. Compatible with IEC 61850 ed 2 standard.
Wide range of line interfaces available for the most usual communication channels.
What’s new?
1. Complete IEC61850 Ed.2 server
2. Cybersecurity
3. A new optical line module with SFP interface
4. New 2Mbit/s and 64 Kbit/s line interface modules
5. A new Java-free WEB management system.
Key features
Complies with IEC 60834-1 and IEC TS 61000-6-5 standards.
Complies with ANSI IEEE C37.90.1 and ANSI IEEE C37.90.2 standards.
Compatible with IEC 61850 Ed.2 standard.
Capable of managing one or two analog and/or digital line interfaces.
Capable of operating as two independent teleprotection terminals in one chassis when equipped with two line interfaces.
Intended for blocking, direct and permissive tripping schemes, as well as for telesignaling systems.
Capability of command transits for T (Teed-line) and ring line topologies.
Analog line interface
- Number of commands:Up to four
- Interface: 4-wire / 600 ohms
- Bandwidth: 2.5 or 4 kHz.
Digital line interfaces
- Number of commands: Up to eight
- Available interfaces: E1 (G.703.6), 64 kbit/s (G.703, V.11 or V.35 or X.21), C37.94 MM of SM fiber optic (2, 60 or 120km range), Ethernet
Possibility of transmitting remote measurements from distributed energy resources (DER) such as wind farms, solar plants, biomass plants and others.

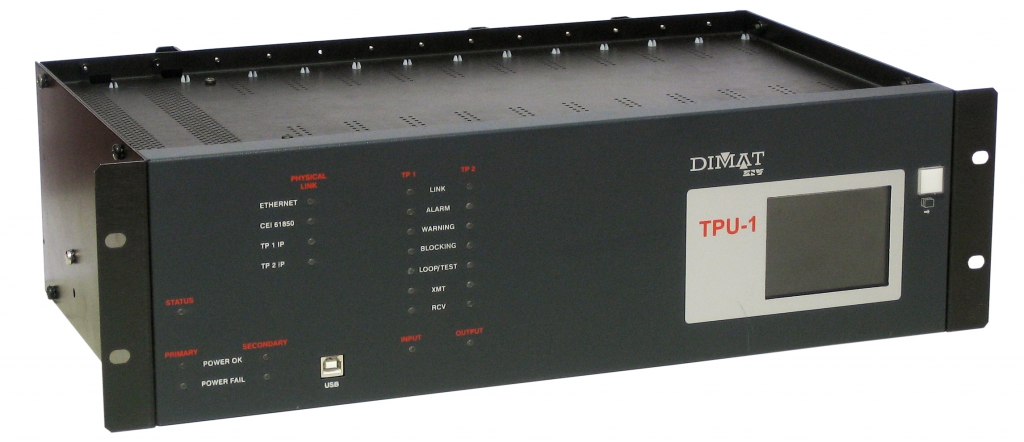

Compact 19″/3 s.u. chassis.
SNMP V1/V2c/V3 agent.
Web management system with LAN connection (HTTPS).
Redundant power supply (optional).
LCD screen for command counters (optional).
Built-in or cabinet-mounted terminal blocks.
TPU-1 brochure
